Suit -1KW Airmar/ Furuno transducer -GEN2.0 TM2 heavy duty mounts

The 1 Kw transducer is like dragging a brick through water!

That's why it is recommended to "skim" the water, but you may have found that "skimming" doesn't give you the results You hoped for and You loose image over 4 knots.

WHY?

Its because of Your Boat hull. your boat slices through the water, at speed, smashing up those beautifully connected water molecules, air is introduced and Your left with - A Turbulent layer. Just look at the trail behind Your boat, what a mess Your boat leaves behind!

Your top surface "skimming"  transducer is trying to read through that  MESS.

LETS THEN ADD  :

• The factory mounting with its limited adjustment and positioning ability.
• A plastic vibrating factory mount.
• The difficulty of making angle  adjustments
• Increased distance away from the transom with the factory designed mount and... You are not going to get optimal results or loose image under any type of speed over 4 knots.

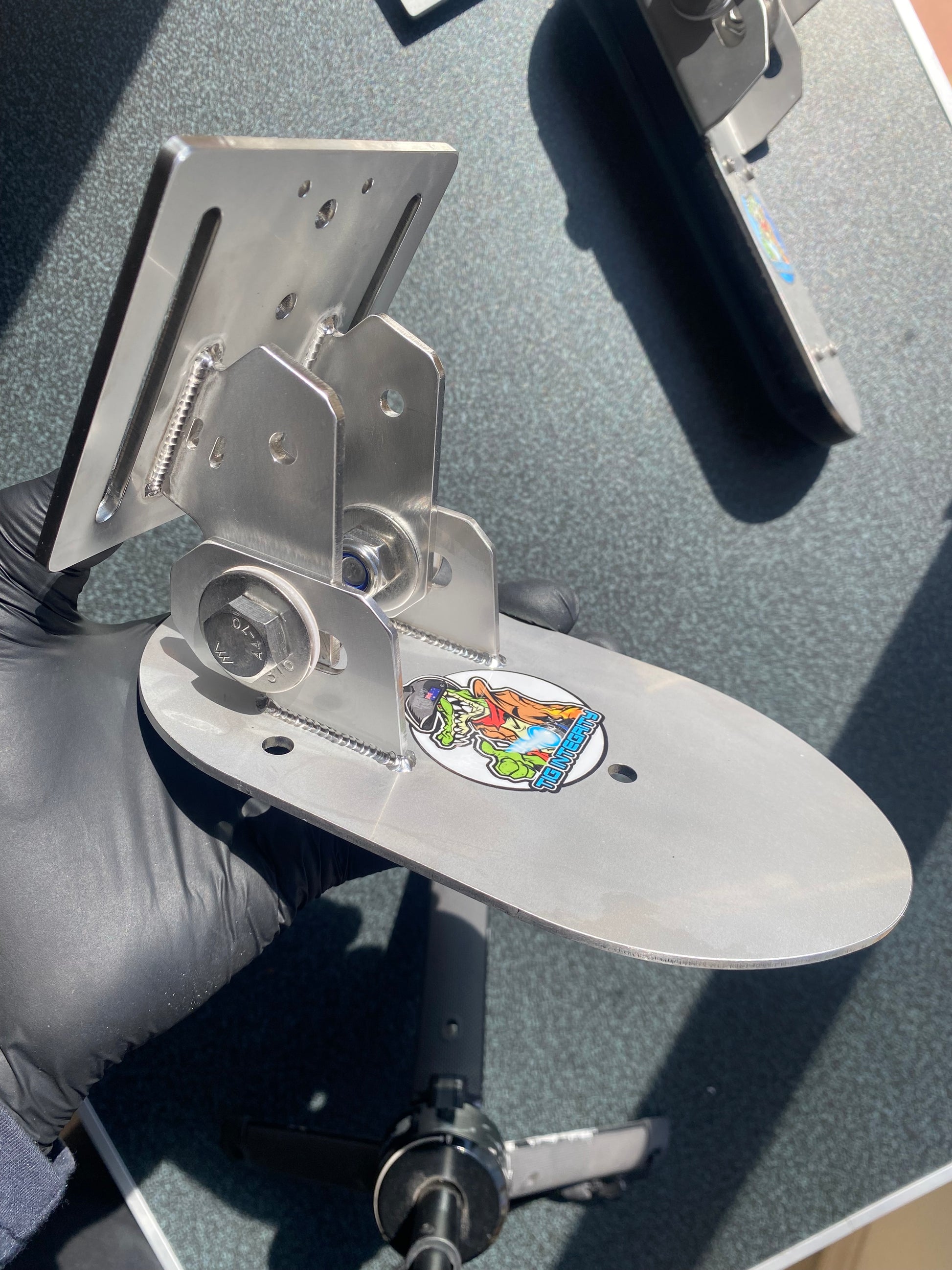

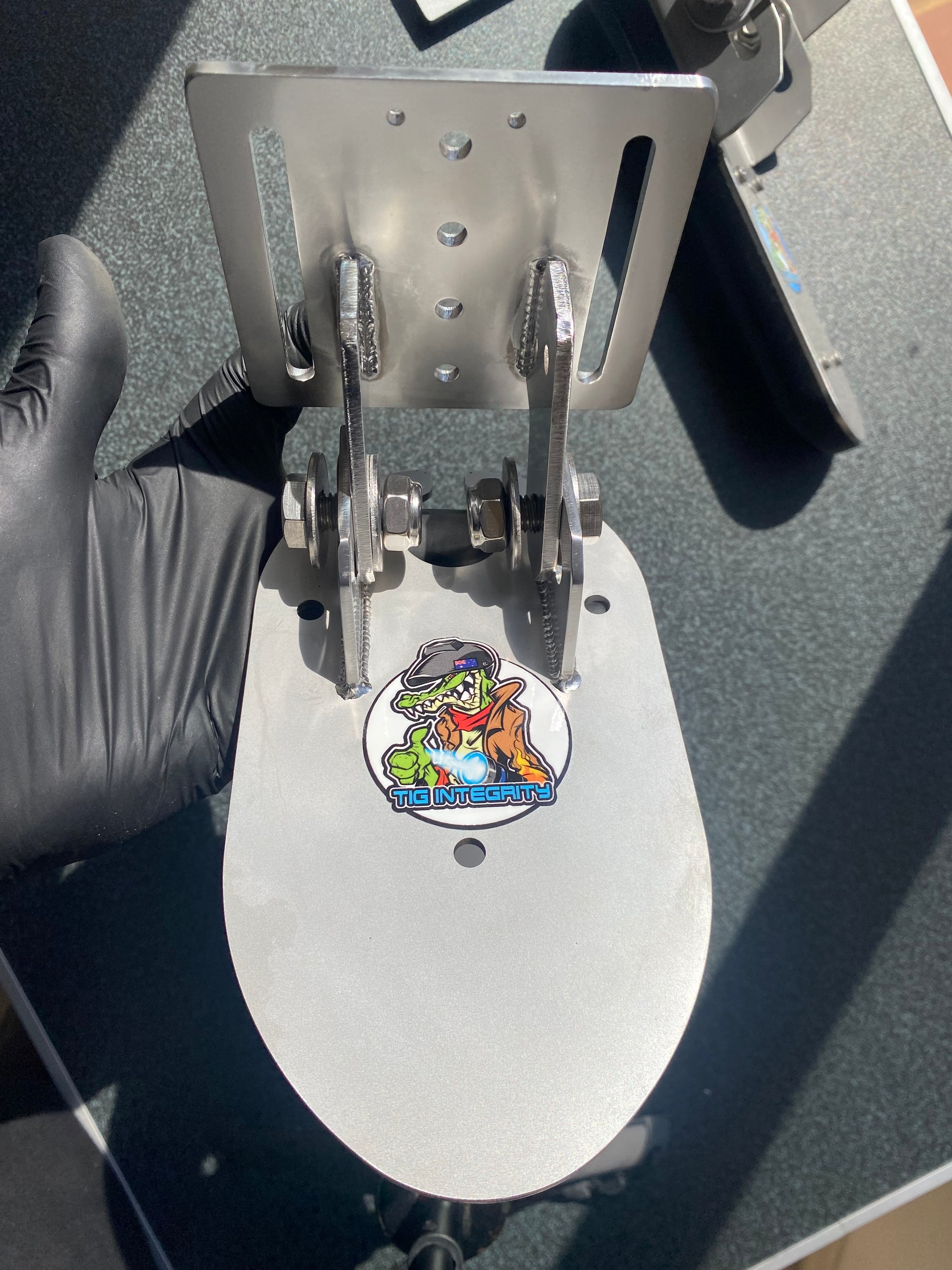

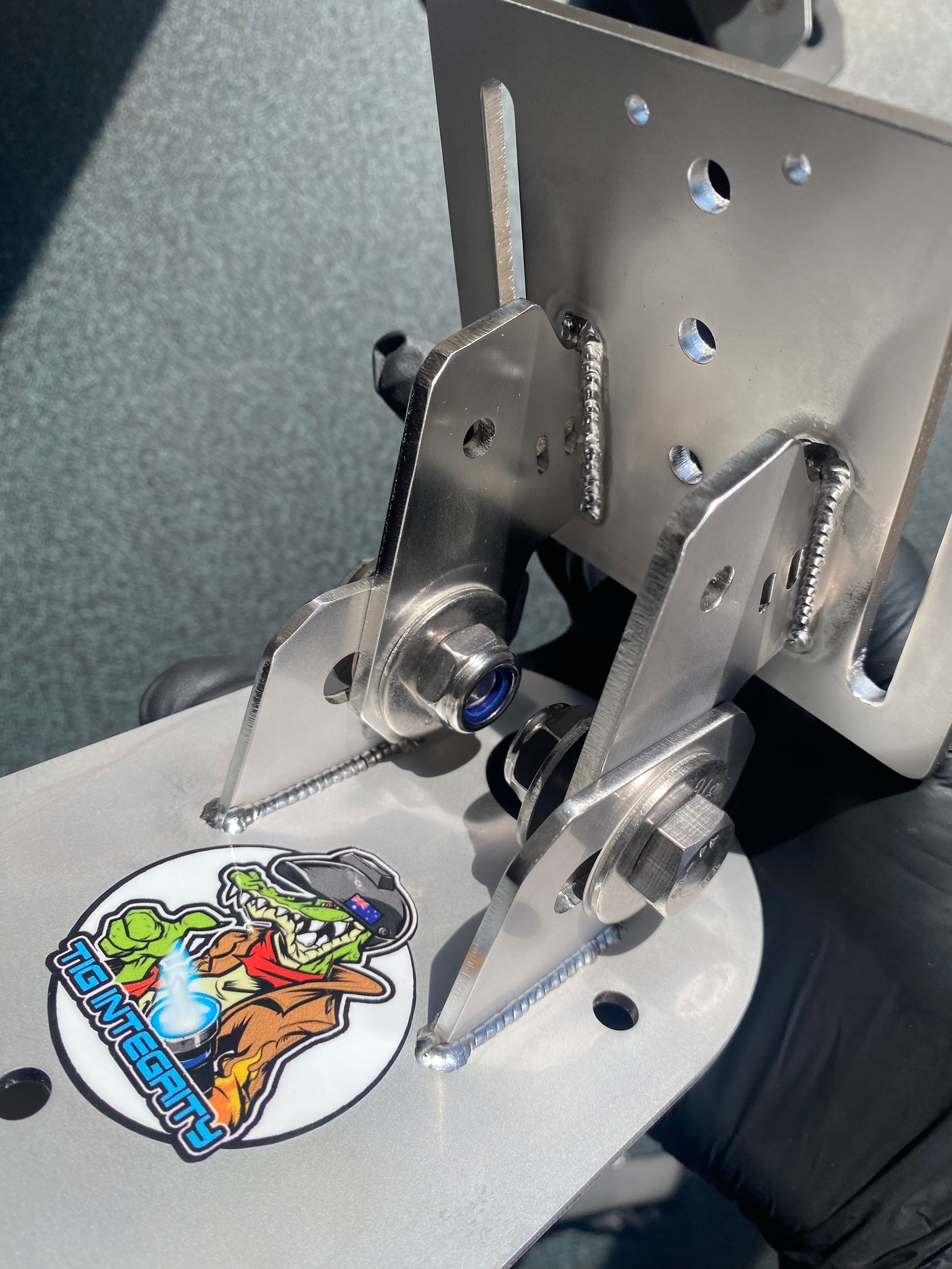

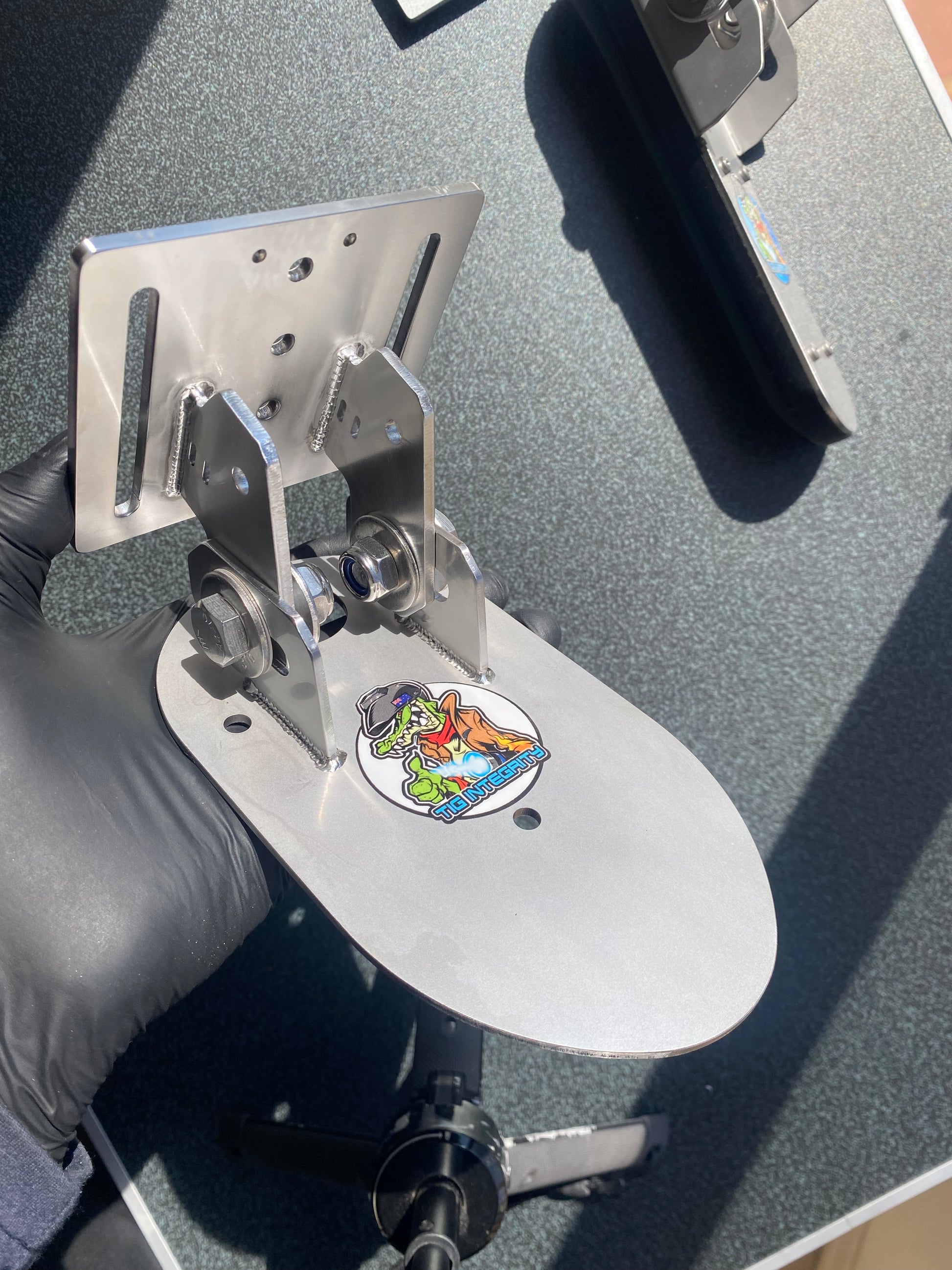

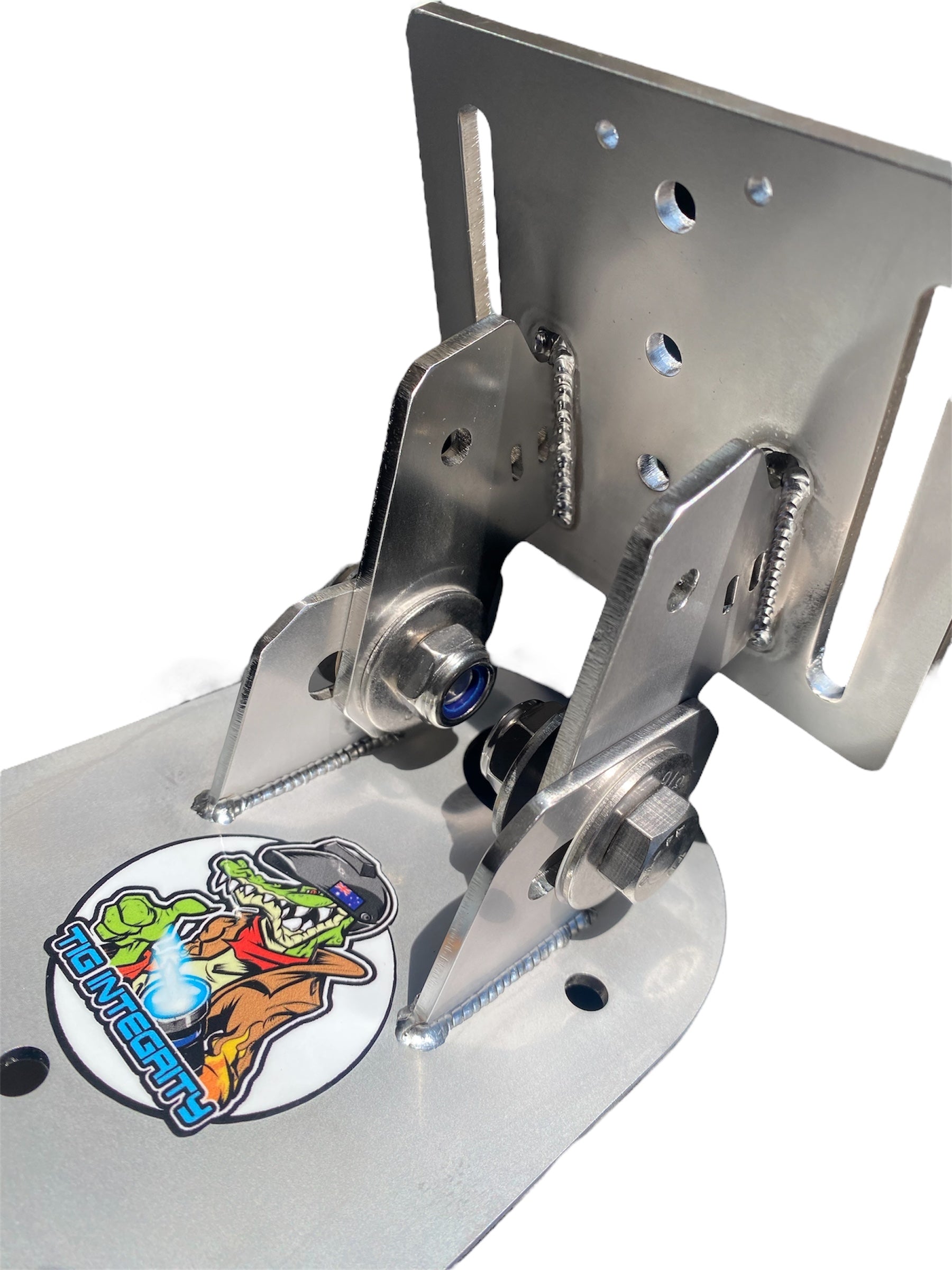

THE TM2 GEN 2 mount REMOVES THE NEGATIVE VARIABLES AND GETS BETTER RESULTS!

Find that sweet spot easy with Quick, simple -  Angle, Height, Fore and Aft adjustment.

• TM2 design can get your 1KW transducer up to 30mm deeper in the water to get below the turbulent layer.
• TM2 needs no wedges and allows for quick, easy angle, fore and aft  adjustment, and conveniently can be adjusted on-the-water for same day results.
• The simple TM2 design  is Rock solid in its construction and minimises turbulence that can occur from the bulky and rattly factory plastic mounting design.
• TM2 allows the transducer to touch the transom, even with up to a 30-degree transom angle, ensuring it’s sounding in the cleanest possible water.
• TM2 should last a lifetime in harsh sea conditions

Spray guard compatibility: Spray guard tabs are available to accommodate a spray deflector . No doubt, if You need to sink Your transducer deeper than "skimming" then your going to need to cover the spray caused by the brick dragging.

This is a secondary issue that is easier to fix than a poor sonar image.

The tabs can purchased separately .We recommend purchasing the tabs with the initial purchase to save money with  no secondary shipping cost needed .(spray PLATE not included) SEE spray plate tabs product.

We also have many videos on how to create the deflector plate. SEE HOW TO DIY videos.

Jackplate option : You get easy and quick test height adjustment and You have the option to stow away from potential damage that can occur from road travel and beach launching. See TM2 Jackplate product.

#from SEPT 25 Our new model comes with deep drop and standard drop rear fixing plate - just turn the rear fixing plate upside down for either option. ( currently some pics may not show the new model)

Easy retrofit: .No need to detach the entire cable setup during retrofitting, just slide cable into the rear slot.

No extra drilling required: The TM2 is compatible with existing factory mount slot patterns, so there’s no need for additional drilling when replacing the factory mount.

If you have any questions, just ask.
